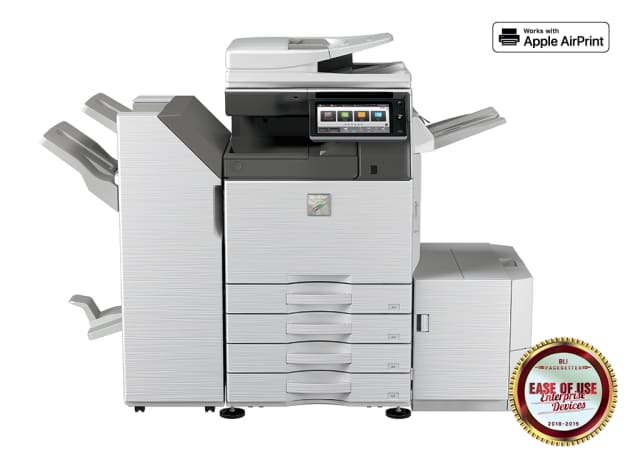

This Sharp MFD is a printer/ copier/ scanning/ facsimile* all-in-one device. Enjoy more functions with this space-saving design.
*requires optional expansion
10.1-Inch Colour LCD Touchscreen
Sharp’s award-winning, customisable touchscreen display incorporates an Easy UI mode, for fast, simple operation, with basic functions displayed in large, clearly labelled tiles and keys. And with the Advanced Preview function, you can also check document finishes, edit pages in advance, and more.
Built-In Retractable Keyboard
Designed to simplify e-mail address and subject line entries, as well as repetitive scanning tasks and user authentication, the standard built-in keyboard offers users a familiar ergonomic interface.
Multi-layered, leading-edge security features provide enhanced protection and help businesses stay one step ahead of hackers and malicious network intruders. Manage your print security and protect your confidential information whether it is being printed, copied, scanned, faxed, stored, or shared over your network. The standard End-of-Lease feature can also erase all data and personal information at trade-in time.
Link with Mobile Devices
Connecting Sharp MFPs to one or more mobile devices is easy. Not only can you send scanned documents to mobile devices, you can also print documents or photos sent from those devices. The Sharpdesk Mobile print/scan app lets you easily link your mobile device to the MFP by simply holding it over the MFPs NFC tag or by scanning the MFPs QR Code®.
Access popular cloud services such as Microsoft® OneDrive™ for Business, SharePoint® Online, Google Drive™ , Box and Dropbox with Sharp’s Cloud Connectors. And with Sharp’s Application Portal, administrators can add or update apps directly via the MFP operation panel.
Direct Printing/Scanning with USB Drives
Insert a USB drive and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive — or you can scan documents directly to the USB drive.
Convert Documents via OCR
With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.
The Sharp Remote Operation feature lets you display the MFP’s main control panel on the screen of your PC or mobile device. From a remote location, IT Administrators and Help Desk Professionals can control the Sharp MFP and even assist users through the necessary steps when executing MFP functions.
Pantone Color Matching
PANTONE’s expert colour analysts have tuned the PANTONE colours specifically for Sharp MFPs to ensure accurate colours without extensive colour expertise or the use of expensive workflow software. When using the Postscript printer driver, the carefully crafted colour tables faithfully, and easily, reproduces colours from the Pantone Coated Series of colours onto printed documents.
Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.
- Supported Paper Size
- Max A3
- Operation Panel
- Colour 10.1" LCD Touch-Screen
- Product Environment
- Printed Paper Size
- Tray : SRA3-A5R, Bypass: SRA3-A5R, Long Paper (Max. 1300mm x 320mm)
- Standard Paper Capacity
- 650 sheets (550-sheet x 1 + 100-sheet multi bypass)
- Maximum Paper Capacity
- 6,300 sheets (650 sheets & optional 550 + 2,100-sheet tray and 3,000-sheet tray)
- Paper Weight
- Tray: 60 g/m2 to 300 g/m2. Multi-bypass tray: 55 g/m2 to 300 g/m2
- Output Capacity
- Opt: MXTU16 250-sheet centre tray, Opt: MXTR19N 100-sheet right tray
- Warm-up Time
- 20 sec or less (via Power Button)
- Resolution (Equivalent)
- 9,600 (equivalent) x 600 dpi (depending on Copy mode), 1,200 x 1,200 dpi (B/W Printer) & 600 x 600 dpi (Col Printer)
- 5 GB (STD & Max)
- HDD Capacity
- Std. (60 – 256 g/m2)
- Dimensions (W x D x H)
- 608 x 650 x 834 millimetre
- 79 kilogram
- Sharp OSA
- Copy Speed
- 30 ppm (A4), 16 ppm (A3)
- E-Sort / SOPM
- Yes / Yes
- First Copy Time (OC)
- B/W: 4.7sec, Col 6.7sec
- Continuous Copy
- Max 9,998
- Scan Resolution
- Colour: 600 x 600 dpi; B/W: 600 x 400 dpi, 600 x 600 dpi
- Zoom Range
- 25 - 400% (RSPF 25 - 200%) in 1% increments
- Power Consumption
- Max. 1.84 kW
- TEC Value (Measured)
- 1.8 kWh
- Noise (Measured)
- Standby: 32 dB, Operating 71dB (Measurement with MXFN28/RB25N/DE27N)
- Document Feeder
- Std. RSPF
- Original Capacity
- Max 100 sheets (80 g/m2)
- First Copy Time
- Colour: 9.7 sec / Mono: 7.6 sec
- Scan Speed (Copy/Scan)
- Copy Mode: B/W 80 opm / Colour 53 opm (1-sided); Scan Mode: B/W & Colour 80 opm (1-sided)
- Quick/Main Folder
- Quick Folder: Max: 10,000 pages or 1000 files; Main/ Custom: Max. 20,000 pages or 3000 files
- Preview Thumbnails
- Supported (includes Advanced Edit Mode)
- PDL (Emulation)
- STD: PCL6, Adobe® PostScript®3
- USB2.0, 10Base-T / 100Base-TX / 1000BaseT
- TCP/IP (IPv4, IPv6),
- Supported OS
- Windows® 7*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 / 2019 (*32/64bit). Mac OS 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13, 10.14 & 10.15.
- Utility Software (Download)
- NST-Lite; Sharpdesk with Network Scanner Tool (user license required)
- Utility Software (Download)
- Status Monitor
- Sharpdesk Mobile
- Airprint Support
- Pantone Support
- Push scan: 100, 150, 200, 300, 400, 600 dpi Pull scan: 75, 100, 150, 200, 300, 400, 600 dpi 50 to 9,600 dpi via user setting
- TIFF, JPEG (colour/greyscale only), XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Compact PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8.
- Desktop (NST-Lite), FTP, E-Mail, SMB Folder, USB, HDD, TWAIN / WIA compliant, I-Fax (SMTP)
- User Registration
- Max 2,000 registrations (Max. 500 addresses for one Group Key)
- Facsimile Model
- Opt : MXFX15
- Facsimile Model
- Communication Protocol
- Super G3
- Transmission Speed
- 2 sec.range (Super G3/JBIG), 6 sec.range (G3/ECM)
- Inbound Routing
- Yes (TIFF, XPS & PDF Format)
- PC Fax
- Yes (For Windows only)
