105PPM A3 Mono Light Production MFD with DSPF
MXM1055

105PPM A3 Mono Light Production MFD with DSPF

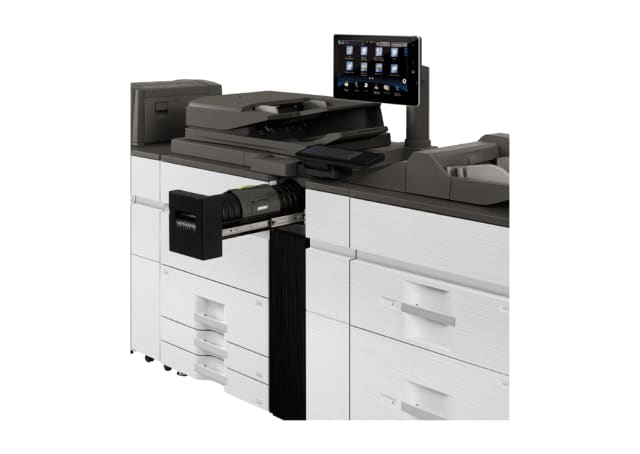

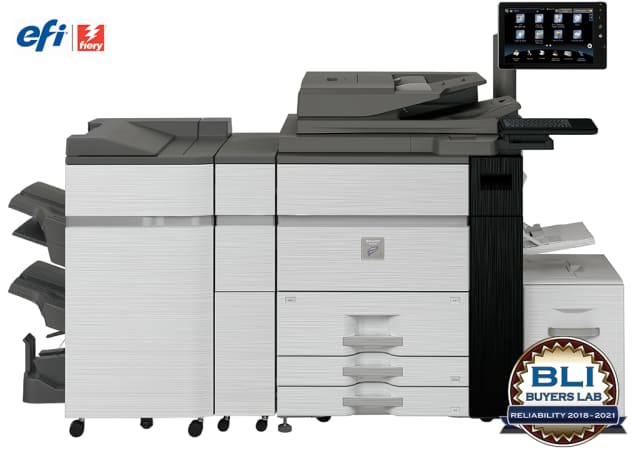

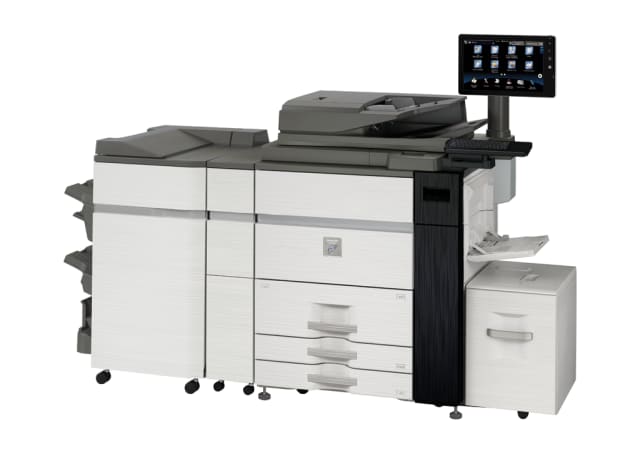

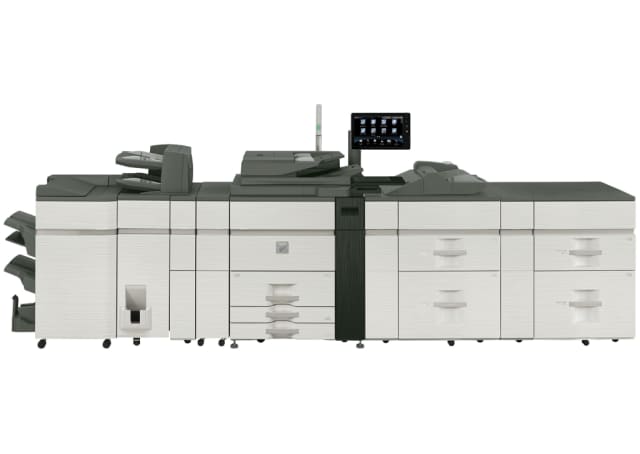

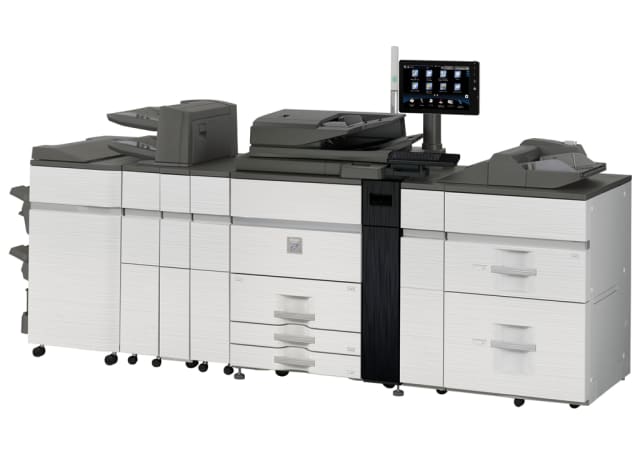

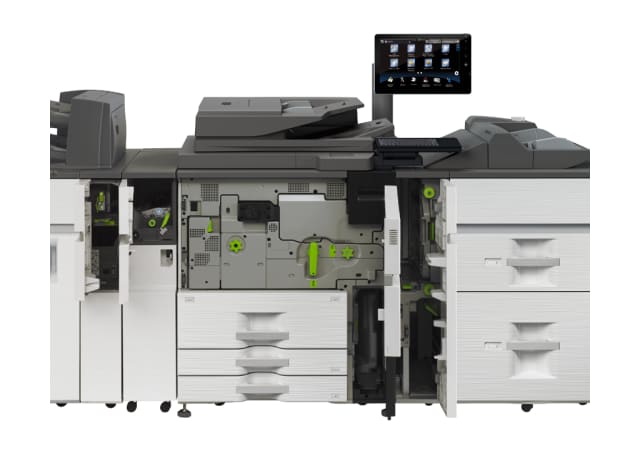

Whether in a corporate data centre or a high-volume CRD*, Sharp’s MX-M1055 stands out as a high-performance MFD you can count on. This light production powerhouse pumps out 105 ppm of pristine B/W documents in ultra-fine 1,200 dpi detail. And convenience comes from the Fiery® Print Server option and Command WorkStation, which lets you manage print jobs right from the MFD‚ 15.4-inch colour touch panel. With its flexible configuration and range of finishing options, the MX-M1205 offers a walk-up-and-use solution for even the busiest print-on-demand environment.

  • Central reprographics department

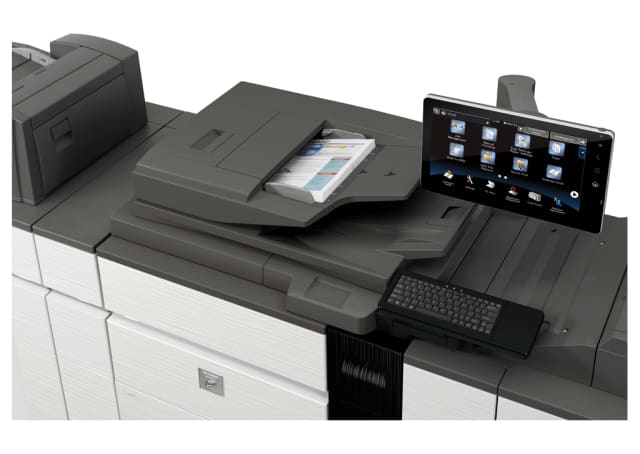

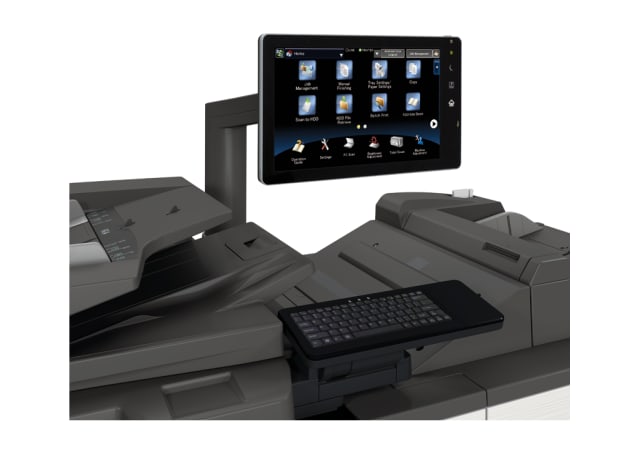

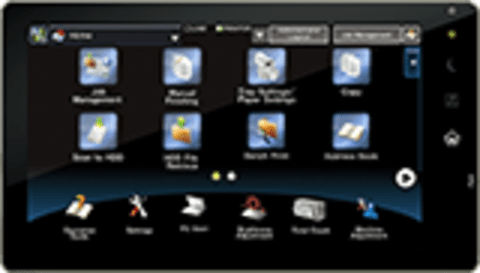

15-4-Inch Colour LCD Touchscreen

Sharp’s user friendly touchscreen interface enables intuitive MFD operation. Document finishes and page layout can be confirmed onscreen before printing to prevent erroneous printouts and paper waste. And documents can be previewed in various modes to match the task in hand.

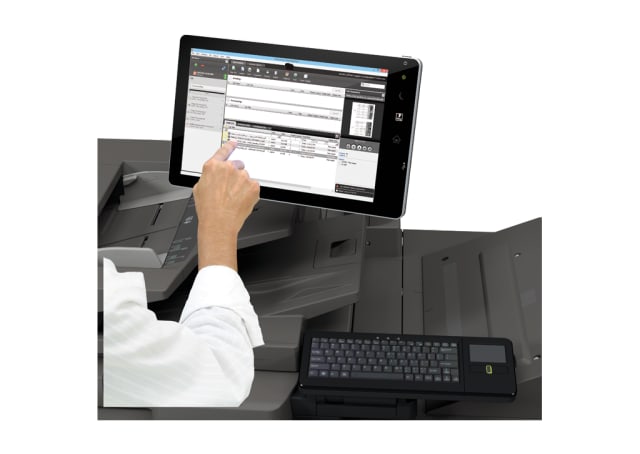

Fiery® Print Server

Paired with the MX-PE11, an industry-leading EFI™ Fiery external print server, this Sharp MFP becomes a powerful integrated solution for managing professional in-plant and busy on-demand printing environments. Featuring Command Workstation, users can also troubleshoot production locally at the Fiery Server directly from the MFD touchscreen.

Multi-Layered Security

Multi-layered, leading-edge security features provide enhanced protection and help businesses stay one step ahead of hackers and malicious network intruders. Manage your print security and protect your confidential information whether it is being printed, copied, scanned, faxed, stored, or shared over your network. The standard End-of-Lease feature can also erase all data and personal information at trade-in time.

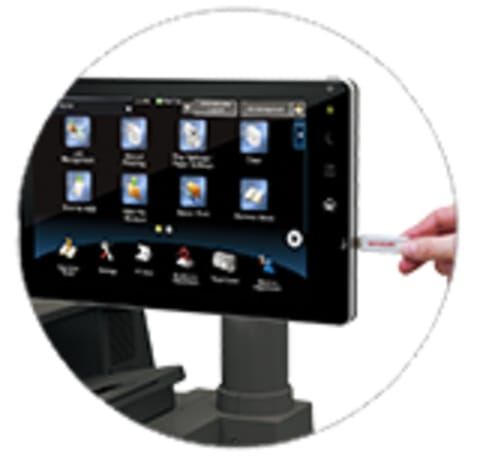

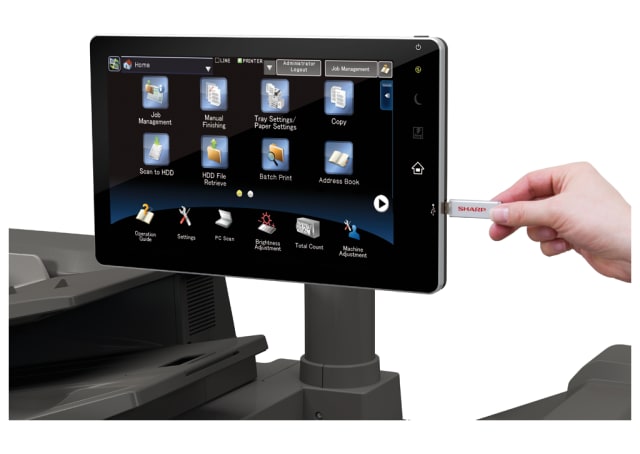

Direct Printing/Scanning with USB Drives

Insert a USB drive and a print/scan command screen will automatically pop up on the LCD. Right away you can print files from the USB drive — or you can scan documents directly to the USB drive.

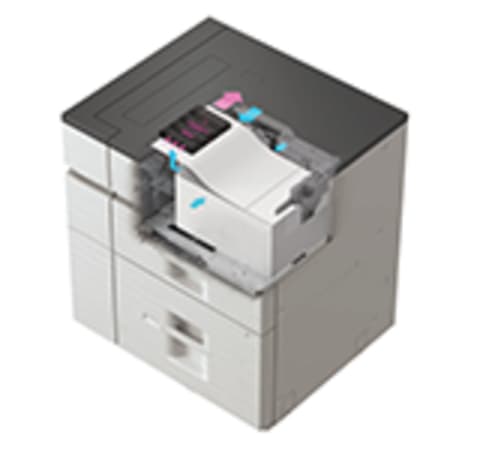

Triple Air-Feed System

The triple Air-Feed system on the optional MX-LC13N Large Capacity Tray reliably separates and feeds paper to facilitate jam-free operation, whilst supporting a wide range of paper types for proper paper handling.

Multi-Feed Detection System

A precision-engineered Multi-Feed Detection System on this Sharp MFD employs ultrasonic technology to detect misfeeds in the DSPF and Paper Feed Section of the paper trays.

Remote Operation

The Sharp Remote Operation feature lets you display the MFP’s main control panel on the screen of your PC or mobile device. From a remote location, IT Administrators and Help Desk Professionals can control the Sharp MFP and even assist users through the necessary steps when executing MFP functions.

Sharp OSA®

Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.

Supported Paper Size
Max A3
Operation Panel
Colour 15.4" LCD Touch-Screen
Product Environment

Light production and Department

Printed Paper Size
Tray: A3W-A5R, Opt Bypass: A3W-A5R [MX-MFX1] or SRA3-A5R [MX-MF11]
Standard Paper Capacity
3,100 (1,250 + 850 + 2 x 500 + 100-sheet multi bypass option)
Maximum Paper Capacity
13,500 (1200 + 800 sheets, 500 sheet x 2, 500 sheet bypass, 2500 sheet x 4 LCT)
Paper Weight
Tray 1 & 2: 60-105 g/m2, Tray 3 & 4: 60g/m2-220g/m2, Bypass: 52g/m2-300g/m2 (MXMFX1)
Output Capacity
* Optional Finisher is required
Warm-up Time
210 Sec
Resolution (Equivalent)
600 x 600dpi, 1200 x 1200dpi, 9600 (equivalent) x 600dpi
Memory
5GB (copy/print shared)
HDD Capacity
1TB
Duplex
Std. (60 – 220 g/m2)
Dimensions (W x D x H)
1099 x 775 x 1529 millimetre
Weight
300 kilogram
Sharp OSA
4.5
Copy Speed
B/W: 105 ppm (A4), 52 ppm (A3)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
3.2 Sec
Continuous Copy
Max 9,999
Scan Resolution
600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi
Zoom Range
25 - 400% (DSPF 25 - 200%) in 1% increments
Power Consumption
Max. 2.99 kW
TEC Value (Measured)
15.6 kWh
Noise (Measured)
Operating: 80db, Standby: 58db
Document Feeder
Std. DSPF
Original Capacity
Max 250 sheets
First Copy Time
5.5 Sec
Scan Speed (Copy/Scan)
Copy/Scan Modes: 120 opm (1-sided), 200 opm (2-sided).
Quick/Main Folder
Quick Folder: Max 3,000 pages, Main/Custom Folder: Max 35,000 pages or 5,000 files
Preview Thumbnails
Supported (includes Advanced Edit Mode)
Print Speed (Max)
B/W: 105 ppm (A4), 52 ppm (A3)
PDL (Emulation)
STD: PCL 6 emulation, Adobe® PostScript® 3™; Opt: XPS
Interface
USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless LAN
N/A
Protocol
TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
Supported OS
Windows® Vista*, Windows® 7*, Windows® 8*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 / 2016 / 2019 (*32/64bit). Mac OS 10.4, 10.5, 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13, 10.14 & 10.15
Utility Software (Download)
Status Monitor
Sharpdesk Mobile
Not Supported
Airprint Support
Supported using Third Party Software only
Pantone Support
N/A
Resolution
100, 150, 200, 300, 400, 600 dpi
Format
Mono: TIFF, XPS, PDF, PDF/A & Encrypted PDF; Colour: TIFF, JPEG, XPS, PDF, PDF/A & Encrypted PDF; Opt: MX-EB11 Compact PDF.
Destination
FTP, E-Mail, SMB Folder, HDD, TWAIN / WIA compliant, Opt: I-Fax (SMTP)
User Registration
Max 2,000 registrations (Max. 500 addresses for one Group Key)
Utility Software (Download)
None
Facsimile Model
Not Supported
Communication Protocol
N/A
Transmission Speed
N/A
Compression
N/A
Inbound Routing
N/A
PC Fax
N/A
