(Discontinued) 26PPM A3 Mono MFD with RSPF
MXM266NV

(Discontinued) 26PPM A3 Mono MFD with RSPF

Discontinued

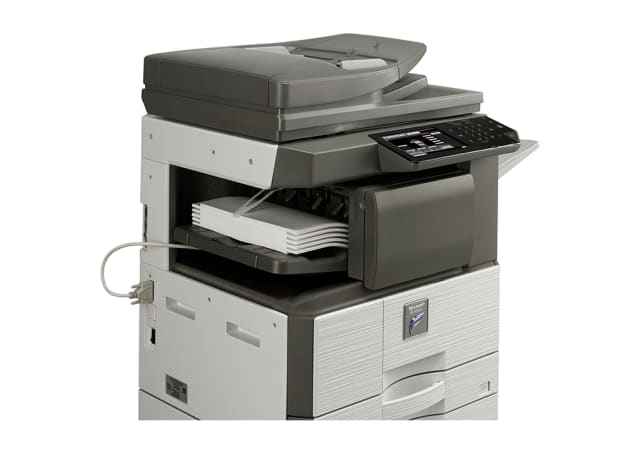

Sharp’s MX-M266NV delivers the ideal balance of high performance and exceptional ease of use.

Four-in-one function and an array of user-friendly features make this B/W MFD a practical and productive addition to small or medium-size offices, where it can boost efficiency as the central document solution, and to larger workplaces, where it can quickly handle the diverse document demands of small workgroups.

POA

Multifunctional

This Sharp MFD is a printer/ copier/ scanning/ facsimile* all-in-one device. Enjoy more functions with this space-saving design.

*requires optional expansion

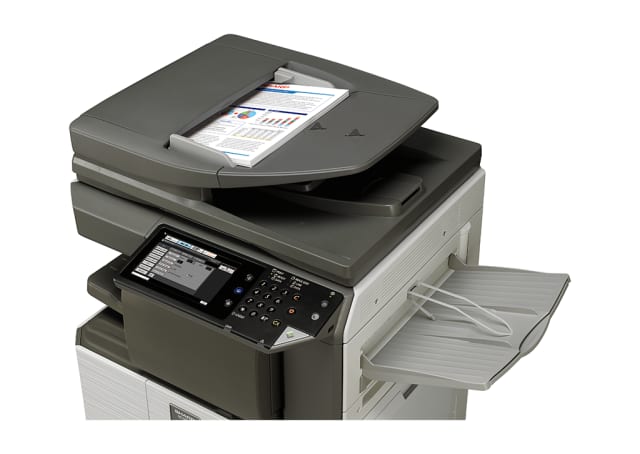

7-Inch Colour LCD Touchscreen

The 7.0-inch colour touchscreen LCD that provides easy navigation of MFD functions and settings. Displaying thumbnails and up-close previews of Document Filing data files on the MFD’s LCD makes file searching easy and convenient.

Wireless Connectivity

The optional Wireless LAN adaptor offers ultra-handy wireless access via two easy modes, enabling convenient access to the MFD even from places where it’s difficult to connect a LAN cable.

Multi-Layered Security

Multi-layered, leading-edge security features provide enhanced protection and help businesses stay one step ahead of hackers and malicious network intruders. Manage your print security and protect your confidential information whether it is being printed, copied, scanned, faxed, stored, or shared over your network. The standard End-of-Lease feature can also erase all data and personal information at trade-in time.

Sharpdesk Mobile

Sharpdesk Mobile is a mobile print/scan application. With Sharpdesk Mobile, users can import documents scanned on the Sharp MFD to their mobile devices for previewing and saving. And files on a mobile device can be printed out on the MFD, sent as e-mail attachments, or used in other applications.

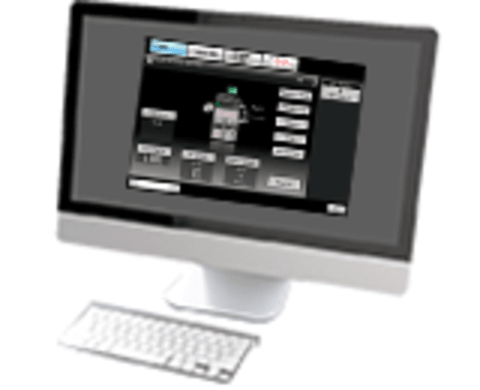

Remote Operation

The Sharp Remote Operation feature lets you display the MFP’s main control panel on the screen of your PC or mobile device. From a remote location, IT Administrators and Help Desk Professionals can control the Sharp MFP and even assist users through the necessary steps when executing MFP functions.

Sharp OSA®

Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel.

Original Size
Max A3
Operation Panel
Colour 7" LCD Touch-Screen
Product Environment

Medium Office/Workgroup

Printed Paper Size
Max. A3 - Min. A6R
Standard Paper Capacity
1,100 (500-sheet x 2 + 100-sheet Multi bypass)
Maximum Paper Capacity
2,100 (500-sheets x 4 + 100-sheet multi bypass)
Paper Weight
Tray: 56-105 g/m2, Bypass 56-200 g/m2
Output Capacity
500 sheets (centre tray), 100 sheets with Opt: MXTR17N ( & MXFN26N)
Warm-up Time
20 sec or less
Resolution (Output)
600 x 600 dpi, 1,200 x 600 dpi (printer only)
Memory
2GB,
HDD Capacity
Opt: 250GB (MXHD15N)
Duplex
Std. (56-105 g/m2)
Dimensions (WxDxH)
620 x 617 x 830 millimetre
Weight
Approx. 51 kilogram
Sharp OSA
3.5
Copy Speed
26 ppm (A4), 15 ppm (A3)
Copy Speed
26 ppm (A4), 15 ppm (A3)
E-Sort / SOPM
Yes / Yes
First Copy Time (OC)
4.3 Sec
Continuous Copy
Max 999
Scan Resolution
Max 600 x 600 dpi
Zoom Range
25 - 400 % with 10 preset ratios (50 – 200% using RSPF)
Power Consumption
Max. 1.45 kW
TEC Value (Weekly)
1.8 kWh
Noise (Measured)
Operating: 55.3db, Standby 14.1db
Document Feeder
Std. RSPF
Original Capacity
Max 100 sheets
First Copy Time
7 Sec
Scan Speed (Max)
Copy/Scan Mode: 56 opm (1-sided)
Quick/Main Folder
Quick Folder: Max: 10,000 pages or 1000 files, Main/ Custom: Max. 20,000 pages or 3000 files
Preview Thumbnails
Supported
PDL (Emulation)
STD: PCL6, Opt. PostScript3 (MX-PK11)
Interface
USB 2.0, 10Base-T/100Base-TX/1000Base-T
Wireless LAN
Optional (MX-EB13)
Protocol
TCP/IP (IPv4, IPv6), IPX/SPX (NetWare), EtherTalk (AppleTalk)
Supported OS
Windows® Vista*, Windows® 7*, Windows® 8*, Windows® 8.1*, Windows® 10*, Windows® Server 2008* / 2008R2 / 2012 / 2012R2 (*32/64bit). Mac OS 10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13 & 10.14. with MX-PK11
Utility Software (Download)
Status Monitor
Sharpdesk Mobile
Supported
Airprint Support
Supported using Third Party Software only
Pantone Support
N/A
Resolution
100, 200, 300, 400, 600 dpi
Format
Mono: TIFF, PDF, PDF/A, Encrypted PDF, XPS Colour: TIFF, JPEG, PDF, PDF/A, Encrypted PDF, XPS
Destination
Desktop (Sharpdesk), FTP, SMB folder, USB memory, Email, i-Fax & HDD (optional)
User Registration
1,000
Facsimile Model
Opt: MXFX11
Communication Protocol
Super G3
Transmission Speed
2 sec.range (Super G3/JBIG), 6 sec.range (G3/ECM)
Compression
MH, MR, MMR, JBIG
Inbound Routing
Yes (PDF, TIFF & XPS - MX-HD15N required)
PC Fax
Yes (For Windows only)
