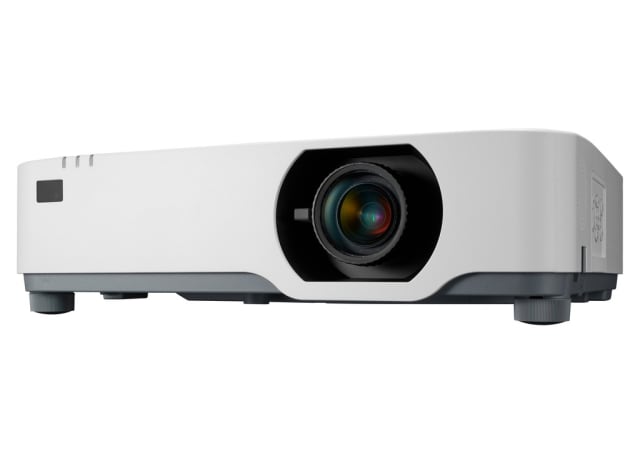

P series Laser WUXGA 6200lm Projector

P series Laser WUXGA 6200lm Projector

Innovation grounded in the true needs of the user results in the P627UL, a laser projector that is so silent it goes unnoticed yet for the 6,200 ANSI lumen image projection, perfectly visible in brightly lit spaces.

With 4K@30Hz input processing, comprehensive connectivity and supporting WUXGA resolution, this future-proofed projector delivers an eye-pleasing visual experience.


Super silent yet brilliantly versatile

Install and forget - requiring zero maintenance over its long 20,000 hour life, the completely sealed optical engine and laser light source means filter and lamp replacement is obsolete; paired with a minimal power consumption of just 318W in normal mode, the P627UL ensures low operational costs.

With optional WiFi and embedded MultiPresenter function for wireless presentation and screen sharing, this is the ideal meeting room and classroom tool, but also meets the needs of rental and staging companies and digital signage use cases.


  • No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
  • Low Noise Level – with 22dB*, the silent technology will not disturb your meeting.
  • Future-proof input management – thanks to 4K@30 Hz input processing.
  • No lamp replacement – up to 20,000 hrs maintenance free operation possible due to Laser Light Source.
  • Risk Group 2 saves you installation and operation effort – because of the Risk Group 2 compliance, no prescribed safety precautions are necessary.

Projection Technology
3LCD Technology
Native Resolution
9.7 kilogram
Fan Noise
22db / 27db (Eco/ Normal)
Aspect Ratio
Contrast Ratio (typ.)
Brightness (Lumen)
Light Source
Light Source Life
20,000 hrs
Projection Distance (m)
0.8 to 12.9m
Screen Size (diagonal)
Max. 762cm, Min. 76.2cm
Dimensions (W x D x H)
480 x 407 x 122 millimetre
RGB (analog) Input
1 x Mini D-sub 15 pin
Digital Input
1 x HDBaseT; 2 x HDMI™ supporting HDCP
Audio Input
1 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio
Audio Output
1 x 3.5 mm Stereo Mini Jack
Input Control
1 x D-Sub 9 pin (RS-232) (male)
1 x RJ45; Optional WLAN
1 x Type B (for Service); 1x Type A (USB 2.0 high speed) with 2.0A Power Supply; 1x Type A (W-LAN Dongle)
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Magnify-function; Page; Picture Adjust; Picture Mute; Power; Presentation and Mouse Control; Select (up, down, left, right); Source Select
Power Consumption
318W (Normal) / 237W (Eco), 1.6W (Network Stand-by) / 0.3W (Stand-by)
Operating Temperature
5ºC to 40ºC
Operating Humidity
20% to 80%
Storage Temperature
-10ºC to 50ºC
Storage Humidity
20% to 80%
Optional Accessories
Wireless LAN module (NP05LM4)
Lenses (Manual)
NP11FL (0.79:1), NP12ZL (1.16-1.52:1), NP13ZL (1.46-2.95:1), NP14ZL (2.9-4.68:1), NP15ZL (4.59-7.02:1)
Lenses (Motorized)
NP40ZL (0.79-1.11:1) NP41ZL (1.3-3.02:1) NP43ZL (2.99-5.93:1) NP44ML (0.32:1) NP50ZL (0.6-0.75:1)
Shipping Content (Accessories)
Power Cable, Remote Control, User Manual, 2x AAA Batteries, Lens Cap, Projector, Quick Setup Guide, Security Sticker, Utility Software
