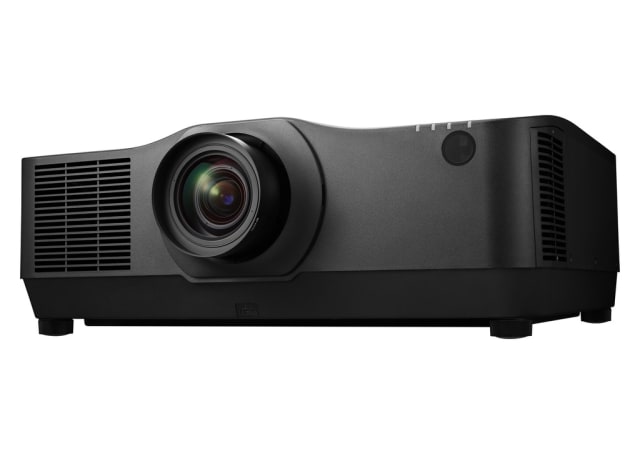

PA Series 8000lm WUXGA Professional Advanced Laser Projector

PA Series 8000lm WUXGA Professional Advanced Laser Projector

Now even larger spaces can benefit from the innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.

Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.


A new class of silent projection

With the newly designed sealed optical engine there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.

Fully compatible with the previous generation lamp-based PA Series mechanical lenses, existing customers can easily make the transition to benefit from the latest laser technology. The PA series is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.


  • No lamp replacement – up to 20,000 hours maintenance free operation possible due to Laser Light Source.
  • No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
  • Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
  • Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
  • Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.

Projection Technology
3LCD Technology
Native Resolution
24.1 kilogram
Fan Noise
28db / 30db (Eco/ Normal)
Aspect Ratio
Contrast Ratio (typ.)
Brightness (Lumen)
Light Source
Light Source Life
20,000 hrs
4 motorized lens options; 5 manual lens options
Projection Distance (m)
0.7 – 50.9m
Screen Size (diagonal)
Max. 1,270cm, Min. 101.6cm
Dimensions (W x D x H)
599 x 490 x 208 millimetre
RGB (analog) Input
1 x Mini D-sub 15-pin, compatible to component (YPbPr)
Digital Input
1 x DisplayPort; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Digital Output
1 x HDBaseT supporting HDCP 2.2
Audio Input
1 x DisplayPort Audio support; 1 x HDBaseT audio support; 2 x 3.5 mm Stereo Mini Jack for Computer analog; 2 x HDMI audio support
Audio Output
1 x 3.5 mm Stereo Mini Jack
Input Control
1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
1 x RJ45
1 x Type A (USB 2.0 high speed)
Remote Control
Audio Control; Digital Zoom; Geometric Correction; ID Select; ID set; Power (On-OFF); Select (up, down, left, right); Shutter function; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Power Consumption
615W (Normal) / 350W (Eco) / 0.8W (Network Stand-by) / 0.28 (Stand-by)
Operating Temperature
0ºC to 40ºC
Operating Humidity
20% to 80%
Storage Temperature
-10ºC to 50ºC
Storage Humidity
20% to 80%
Optional Accessories
10 optional bayonet lenses Cable Cover (NP13CV-W, NP13CV-B)
Lenses (Manual)
NP11FL (0.79:1), NP12ZL (1.16-1.52:1), NP13ZL (1.46-2.95:1), NP14ZL (2.9-4.68:1), NP15ZL (4.59-7.02:1)
Lenses (Motorized)
NP40ZL (0.79-1.11:1) NP41ZL (1.3-3.02:1) NP43ZL (2.99-5.93:1) NP44ML (0.32:1) NP50ZL (0.6-0.75:1)
CE, EAC, ErP, RoHS, TUEV Type Approved
Shipping Content (Accessories)
Power Cable, Projector, Quick Setup Guide, IR Remote Control, Users Manual on CD-ROM
