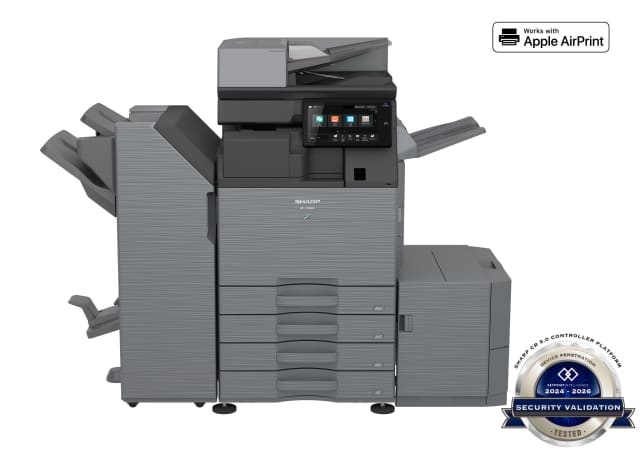

45PPM A3 B&W Advanced MFD with DSPF
Sharp’s New B&W Advanced Series provides unsurpassed performance that simply adapts to your needs.
The BP70M45 Advanced Series takes organisations to the future of business communication by helping them work simply smarter. Designed to fit today’s diverse workstyles, the new Advanced series allows workers to collaborate and share information seamlessly and securely throughout their office environment.
With standard cloud services such as Microsoft OneDrive & Teams, the BP70M45 makes it easy to streamline communication and boost productivity with hybrid workers.
Now’s the time to make the Sharp BP70M45 a reliable partner in your office.
10.1" Full-Flat Touchscreen
With a variety of functions accessible via simple, intuitive icons, the MFD operation is smooth and easy. Customising the home screen has become easier than ever and the control panel can be tilted freely at various angles.
Duplex Single Pass Feeder
With Skewed Sheet Detection sensors that detect images that are not fed in straight and the optional Multi-Feed Detection that stops when two or more originals are fed at once, this 300-sheet DSPF can scan up to 280 opm (originals per minute; two-sided).
Built-In Retractable Keyboard
Designed to simplify e-mail address and subject line entries, as well as repetitive scanning tasks and user authentication, the standard built-in keyboard offers users a familiar ergonomic interface.
Folding Unit
The optional BPFD10 folding unit automates various types of folds, such as Z-fold and C-fold, for efficient production of direct mail and other items. When installed with the BPFN16 saddle finisher, you can even staple Z-fold documents as well.
Link with Mobile Devices
Swiftly linking Sharp MFDs with mobile devices streamlines time-consuming workflows and gives easy access to data on devices. Not only can you send scanned documents to mobile devices, you can also print documents or photos. The Sharpdesk Mobile application also lets you easily link your mobile device via the MFP NFC tag or by scanning the MFPs QR Code®
Print & Share Documents Easily
Seamlessly collaborate with colleagues, even when they are working remotely. With Cloud Connect, businesses gain access to popular cloud services including Microsoft Teams, Google Drive, and others. The Sharp Application Portal also makes it easy for administrators to add new or update existing applications directly from the MFD touchscreen.
Convert Documents via OCR
With standard OCR capabilities, users can easily scan and convert documents to popular file formats including Microsoft Word, PowerPoint and Excel, as well as Searchable PDF & Encrypted PDF. Using Qualcomm DirectOffice technology, you can directly print these same file types from USB thumb drives, cloud applications and mobile devices.
One-Touch Job Recall
The 10 most recent jobs—like copying, faxing, and scanning—can be called up on the LCD screen and their settings displayed. You can then change the settings as required and repeat those jobs.
Multi-Crop & Image Crop Functions
Multiple receipts, photos, and other items can be scanned all at once, with each one saved as a separate file. This helps you streamline the filing of receipts and bills. This MFD can also crop photos from documents such as magazine pages and save them as individual files.
Sharp OSA®
Sharp OSA® technology can help businesses enhance productivity, reduce costs, and simplify IT management. Utilising industry-standard protocols, Sharp MFPs can easily integrate with third-party applications directly from the operation panel. Using secure and scalable communications, Sharp OSA cloud-ready technology further expands flexibility in how the document workflow and security solutions are implemented.
- Original Size
- Max A3
- Operation Panel
- Colour 10.1" LCD Touch-Screen
- Product Environment
-
Medium Office/Workgroup
- Standard Paper Capacity
- 650 sheets (550-sheet x 1 + 100-sheet multi bypass)
- Maximum Paper Capacity
- 6,300 (100-sheet Multi bypass + 550-sheets x 1) + Tandem Desk (550-sheets x 1, 1200 + 900 tandem) + LCC (3000 sheets)
- Paper Weight
- Tray: 60 g/m2 to 300 g/m2. Multi-bypass tray: 55 g/m2 to 300 g/m2
- Output Capacity
- 500 sheets: Opt: BP-TU10 400-sheets (lower) centre exit tray+ MX-TR20N 100-sheet (upper) job separator.
- Resolution (Output)
- Print: 1,200 x 1,200 dpi, 600 x 600 dpi, 9,600 (equivalent) x 600 dpi (depending on copy mode)
- Memory
- 5GB (copy/print shared)
- HDD Capacity
- 256GB SSD, Opt 512GB SSD
- Weight
- 71 kilogram
- Sharp OSA
- 6.0 (Standard)
- Copy Speed
- 45ppm (A4), 21ppm (A3)
- E-Sort / SOPM
- Yes / Yes
- Continuous Copy
- Max 9,999
- Zoom Range
- 25 - 400% (DSPF 25 - 200%) in 1% increments
- Power Consumption
- Max. 1.84 kW
- TEC Value (Weekly)
- 0.52 kWh
- Document Feeder
- Std. DSPF
- Original Capacity
- Max 300 sheets (80 g/m2)
- Scan Speed (Max)
- BW & Colour - 140 opm (1 sided); 280 opm (2 sided)
- Quick/Main Folder
- Quick Folder: Max 10,000 pages, Main/Custom Folder: Max 35,000 pages or 5,000 files
- Preview Thumbnails
- Supported (includes Advanced Edit Mode)
- Print Speed (Max)
- 45ppm (A4), 21ppm (A3),
- Interface
- USB 2.0 (host, high-speed), USB 3.0 (host, super speed), 10Base-T/100Base-TX/1000Base-T, wireless LAN (IEEE 802.11 a/b/g/n/ac)
- Supported OS
- Windows® 8.1, Windows® 10, Windows® 11, Windows Server® 2012(R2), Windows Server® 2016, Windows Server® 2019, Windows Server® 2022, Mac OS 10.10 to 10.15, 11, 12, 13 & 14
- Utility Software (Download)
- Status Monitor
- Sharpdesk Mobile
- Supported
- Airprint Support
- Supported
- Resolution
- Push scan: 100, 150, 200, 300, 400, 600 dpi; Pull scan 75, 100, 150, 200, 300, 400, 600 dpi (50 to 9,600 dpi via user setting)
- Format
- TIFF, JPEG (colour/greyscale only), XPS, PDF, PDF/A, Encrypted PDF, Searchable PDF, Compact PDF, Office Format (docx, xlsx, pptx), TXT, RTF & UTF-8
- Destination
- Desktop (NST-Lite), FTP, E-Mail, SMB Folder, USB & Local drive
- User Registration
- Max 2,000 registrations (Max. 500 addresses for one Group Key)
- Utility Software (Download)
- NST Lite
- Requirement
- Standard
- Cloud Connectors
- Microsoft® One Drive® for Business, Microsoft® SharePoint® Online, Microsoft® Teams®, Google Drive™, Box™ & Dropbox™
- Email Connectors
- Microsoft® Exchange (Online) & Google Gmail™
- Microsoft Universal Print
- Supported
- Sharp Application Cloud Portal
- Supported
- Facsimile Model
- Opt : BPFX11
- Communication Protocol
- Super G3/ G3
- Compression
- MH,MR,MMR,JBIG
- Inbound Routing
- Yes (PDF, Single TIFF, Multi TIFF, XPS) to E-mail, FTP, SMB, Desktop, Fax & I-Fax.
- PC Fax
- Yes (For Windows only)
