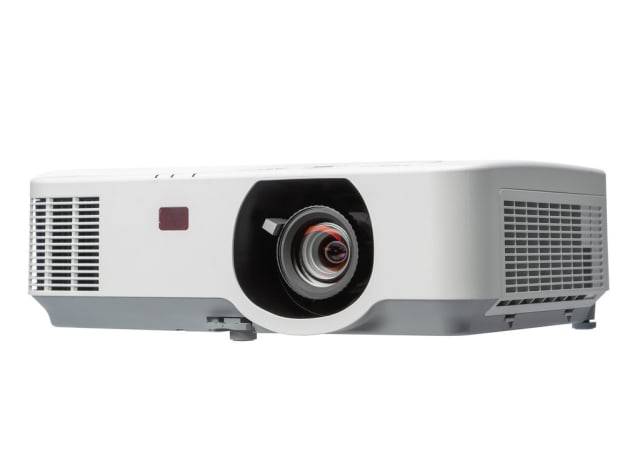

P554U Professional WUXGA 5300lm LCD Lamp Projector

P554U Professional WUXGA 5300lm LCD Lamp Projector

The NEC P554U brings brightness of up to 5,300 ANSI lumen to your meeting and learning spaces.


Brighten up your lectures and meetings

Enjoy smooth operation with low maintenance, long lamp life and the patented LCD panel dust protection with the NEC P554U projector. LCD technology delivers natural colours with a high contrast whilst the wide horizontal and vertical lens shift offers broad flexibility in installation. With its low power consumption, the NEC P554U offers a low total cost of ownership (TCO) and helps you to reduce your carbon footprint.

For more efficient and collaborative meetings and lectures, add NEC’s MultiPresenter option to share content from up to 16 devices! No additional power source is needed as the stick is powered via the USB slot.


  • Professional and Flexible Installation – versatile projection characteristics allow for simple positioning of the projector, making installation easy and potentially saving set up costs.
  • High brightness – for best performance in bright ambient light
  • Cost Saving Device Management – save effort whilst administrating all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
  • Minimized cost of ownership – due to long lamp life and filter exchange intervals.
  • Cost effective replacement – of existing NEC P model installations to achieve better imaging for lectures and presentations without wall-mount adjustment.
Projection Technology
3LCD Technology
Native Resolution
Contrast Ratio (typ.)
Brightness (Lumen)
5300 Normal / 3200 Eco ANSI Lumen; 5600 Centre Lumen
330 W UHP AC
Light Source Life
4,000 hrs (8,000 hrs Eco Mode)
f=1.5~2.08 /f=17.2~27.7mm
Lens shift
H:±0.15, V:+0.55,-0
Keystone correction
+/- 15° manual horizontal / +/- 30° manual vertical
Projection Factor
1.2 – 2 : 1
Projection Distance (m)
0.8 – 12.9m
Screen Size (diagonal)
Maximum: 762 / 300"; Minimum: 76 / 30"
1 - 1.6; Manual
Focus Adjustment
Horizontal: 15–100 kHz (RGB: 24 kHz); Vertical: 50 – 120 Hz
RGB (analog) Input
1 x Mini D-sub 15 pin
RGB (analog) Output
1 x Mini D-sub 15 pin
Digital Input
1 x HDBaseT; 2 x HDMI™ (Deep Color, Lip sync) with HDCP
Video Input
1 x RCA
Audio Input
1 x 3.5 mm Stereo Mini Jack for Computer analog; 1 x RCA Stereo for Video and S-Video; 2 x HDMI audio
Audio Output
1 x 3.5 mm Stereo Mini Jack
Input Control
1 x D-Sub 9 pin (RS-232) (male)
1 x RJ45
1 x Type A (USB 2.0 high speed); 1 x Type B
Video Signals
Remote Control
Aspect Ratio; Audio Control; Auto Adjust; Eco Mode Control; Freeze-function; Help-function; ID set; Keystone Correction; Magnify-function; Page (up, down); Picture Adjust; Picture Mute; Power (On-OFF); Presentation and Mouse Control; Select (up, down, lef
Power Supply
100-240 V AC; 50 - 60 Hz
Power Consumption
431W (Normal) / 277W (Eco) / 2.1W (Network Stand-by) / 0.17W (Stand-by)
Dimensions (W x H x D) [mm]
420 x 133 x 322
Weight [kg]
Fan Noise [dB (A)]
34 / 37 (Eco / Normal)
Operating Temperature
5ºC to 40ºC
Operating Humidity
20% to 80%
Storage Temperature
-10ºC to 50ºC
Storage Humidity
20% to 80%
Optional Accessories
Cable Cover (NP12CV); Lamp (NP44LP)
Speakers [W]
1 x 20 (mono)
Special Characteristics

Auto Eco Mode; Auto Power ON/OFF; Carbon Savings Meter; Contrast Ratio 20000:1 with Iris; Control ID Function; DICOM simulation; Direct Power-Off Function; Help Function; HTTP Browser Control; Kensington security slot; Keypad Lock; Lens Shift (vertical 0 max/55 max, horizontal ± 15 max.); Magnify; Manual Wall Color Correction; NaViSet Administrator 2; Off-Timer; Optional User Logo; OSD with 27 languages; Password Security System; Pincushion Correction; Quick Start; Test Pattern; Unique Power Saving Functions; Virtual Remote for direct PC control

Energy Efficiency
0.4W Power save mode; Auto ECO Mode; Green one touch ECO and AV mute button
Ecological Materials
Downloadable manuals; ECO packaging
Ecological Standards
ErP compliant; RoHs compliant
Shipping Content (Accessories)
IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM
